At Amber Waves, we offer one series of grain bins, which is our best. We manufacture bins ranging from 480-bushel capacity all the way up to the 5600-bushel model. Our available options allow you to customize your bin in ways you’ll find useful for much more than simply storing grain. They’ll add ease and efficiency to your operation, ultimately improving your bottom line.
We don’t believe in taking shortcuts on materials, supporting structure, or in the fabrication process itself. From engineering to delivery and set up, we do everything we can to make sure that you are getting the best value in the industry when you purchase a hopper bin from Amber Waves.

1520

1530 with Air

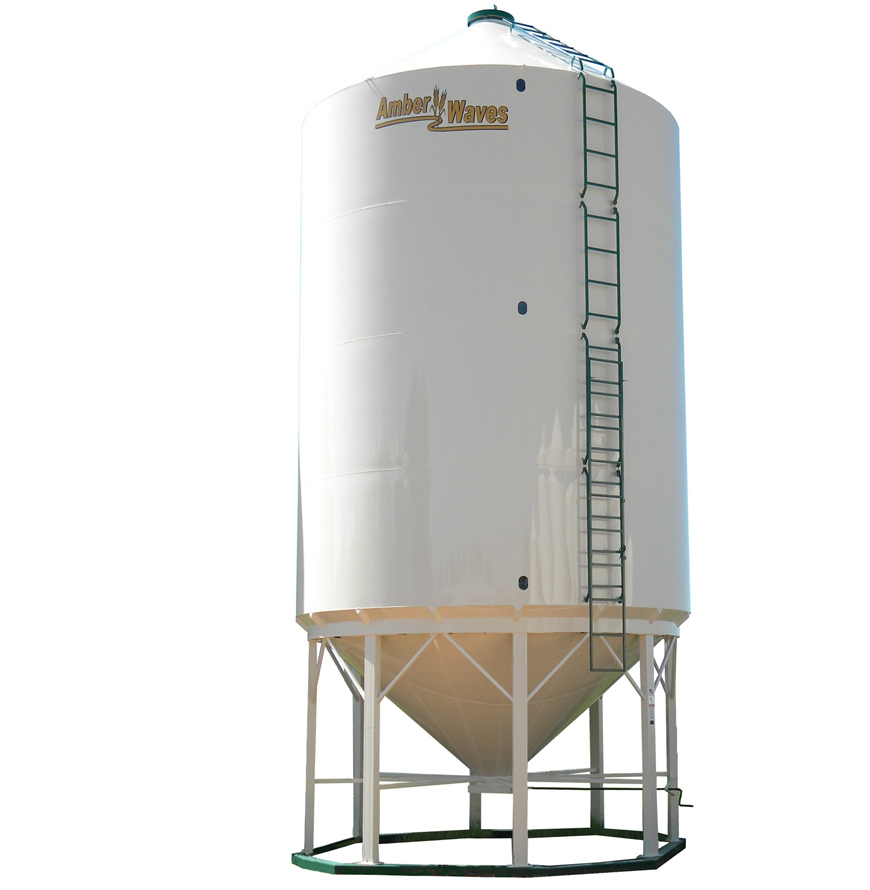

1640

1650

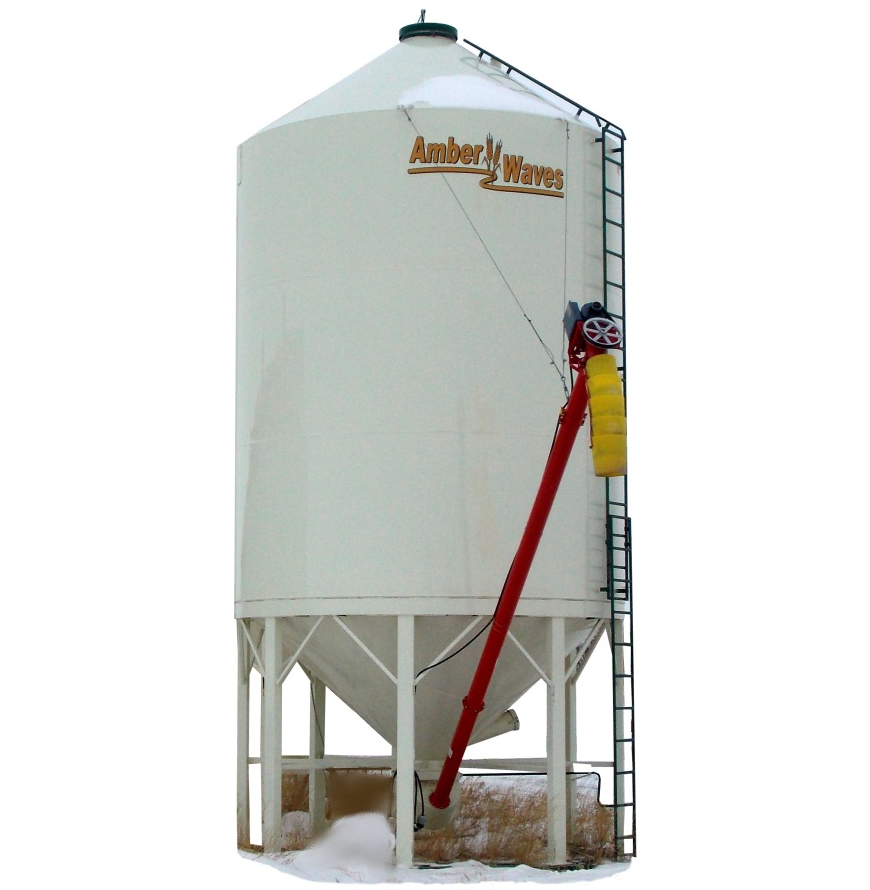

1530 with Auger

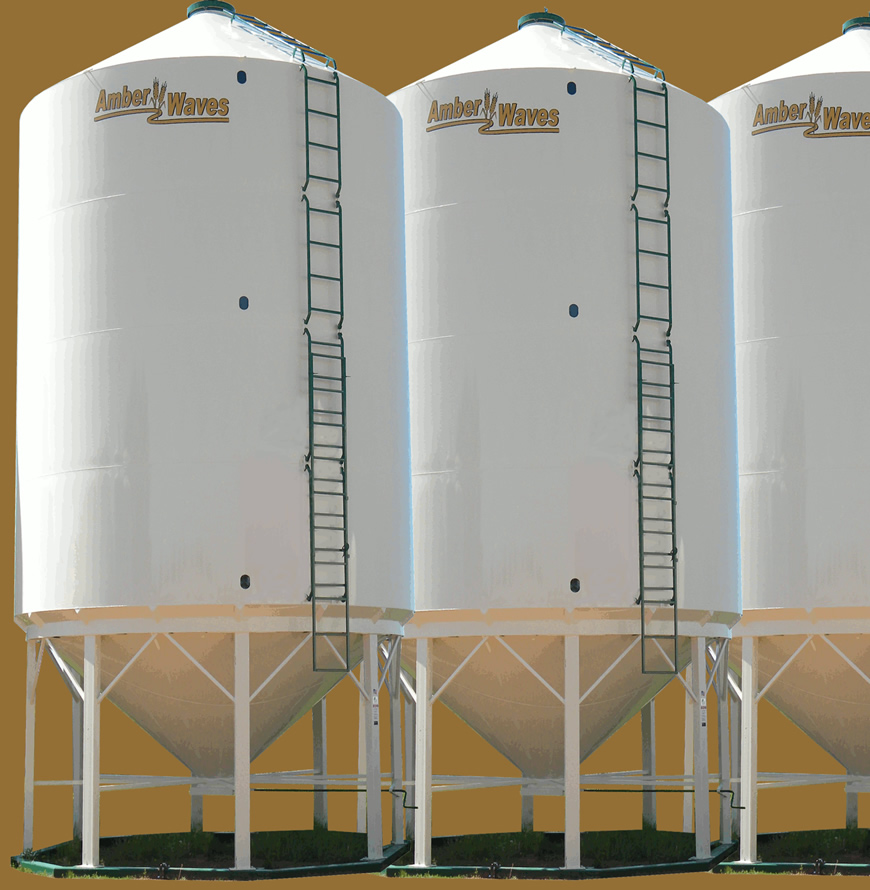

Bin Trio

Storage Site

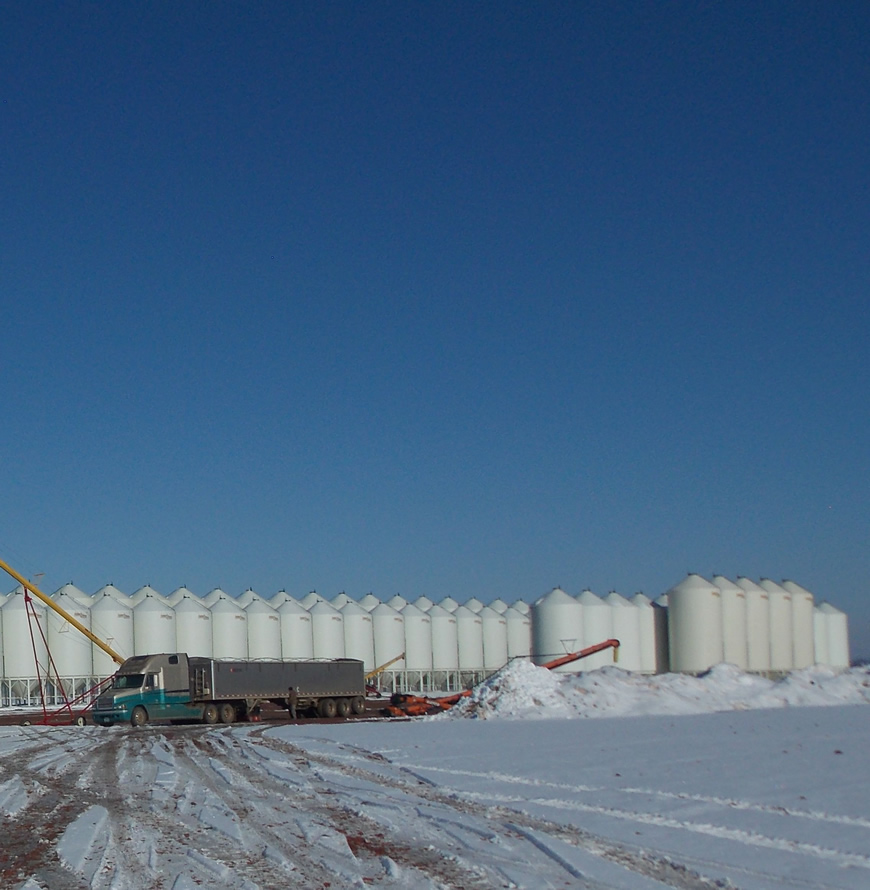

Multi Bin Storage
Standard Features
- 30″ Spring Loaded Vented Lid Biggest in the industry!
- Ladder with Retractable Bottom Section
- 18″ Rack and Pinion Roller Crank Slide Gate
- Bottom Access Manhole
- 2′ Clearance Under Slide Gate
- Extra Clearance
- Primed and Painted Exterior with Extra Tough Polyurethane Paint
Accessories
Check out these customized options to fit your needs. Ask for these additional available options:
- Top Access Manhole
- Poke Hole
- Epoxy Lining
- Auger Boot
- Double Skid Base
- Extra Clearance
- Bean Ladder
- Horizontal or Vertical Aeration Systems
- Ladder Cage and Top Safety Rail
- Inside Ladder
Details and Specifications
grain only bins
15′ & 16′ diameter
42° Bottom cone
35° top cone
MODEL
Bushels
Cu. Ft.
Bin height
auger length
legs
1530G
2,800
3,402
28’8″
51′
6
Multi-purpose bins
15′ & 16′ diameter
42° Bottom cone (45°-55° optional)
35° top cone
MODEL
Bushels
Cu. Ft.
Bin height
auger length
legs
1510
1,350
1,635
18’8″
36′
6
1520
2,000
2,518
23’8″
41′
6
1530
2,800
3,402
28’6″
51′
8
1540
3,600
4,285
33’6″
61′
8
1630
3,200
3,820
29’2″
51′
8
1640
4,000
4,774
34’2″
61′
8
1650
4,800
5,750
39’2″
71′
8
1660
5,600
6,700
44’2″
81′
8
Multi-purpose bins
14′ diameter
42° Bottom cone (45°-55° optional)
35° top cone
MODEL
Bushels
Cu. Ft.
Bin height
auger length
legs
1410
1,100
1,345
19′
36′
6
1420
1,750
2,114
23′
41′
6
1430
2,350
3,402
28′
51′
6
1440
3,000
4,285
33’
61′
6
Multi-purpose bins
13′ diameter
42° Bottom cone (45°-55° optional)
35° top cone
MODEL
Bushels
Cu. Ft.
Bin height
auger length
legs
1310
950
1,153
17’8″
36′
6
1320
1,500
1,816
22’8″
41′
6
1330
2,050
2,480
27’8″
51′
6
1340
2,500
3,115
32’8″
61′
6
Multi-purpose bins
12′ diameter
42° Bottom cone (45°-55° optional)
35° top cone
MODEL
Bushels
Cu. Ft.
Bin height
auger length
legs
1210
750
925
16’2″
36′
6
1220
1,200
1,490
21’2″
41′
6
1230
1,650
2,050
26’2″
51′
6
1240
2,100
2,615
31’2″
61′
6
Multi-purpose bins
10′ diameter
42° Bottom cone (45°-55° optional)
35° top cone
MODEL
Bushels
Cu. Ft.
Bin height
auger length
legs
1010
484
602
14’6″
26′
4
1020
800
995
19’6″
36′
4
1030
1,100
1,380
24’6″
51′
4
1040
1,450
1,780
29’6″
61′
4
