The Amber Waves frac sand bin was born in Bakken. In fact, anytime you see a row of white bins lined up along a rail siding in oil country, odds are pretty good that you’ll see the Amber Waves logo on them.
Strength, durability and dependability are engineered into every one of our frac sand bins, and they’re built strong enough for even the heaviest ceramic proppants. If you needed bins for your transload in North Dakota’s Bakken last year but this year operations are shifting to the Eagle Ford play in Texas, our 1330 model is easily transportable.

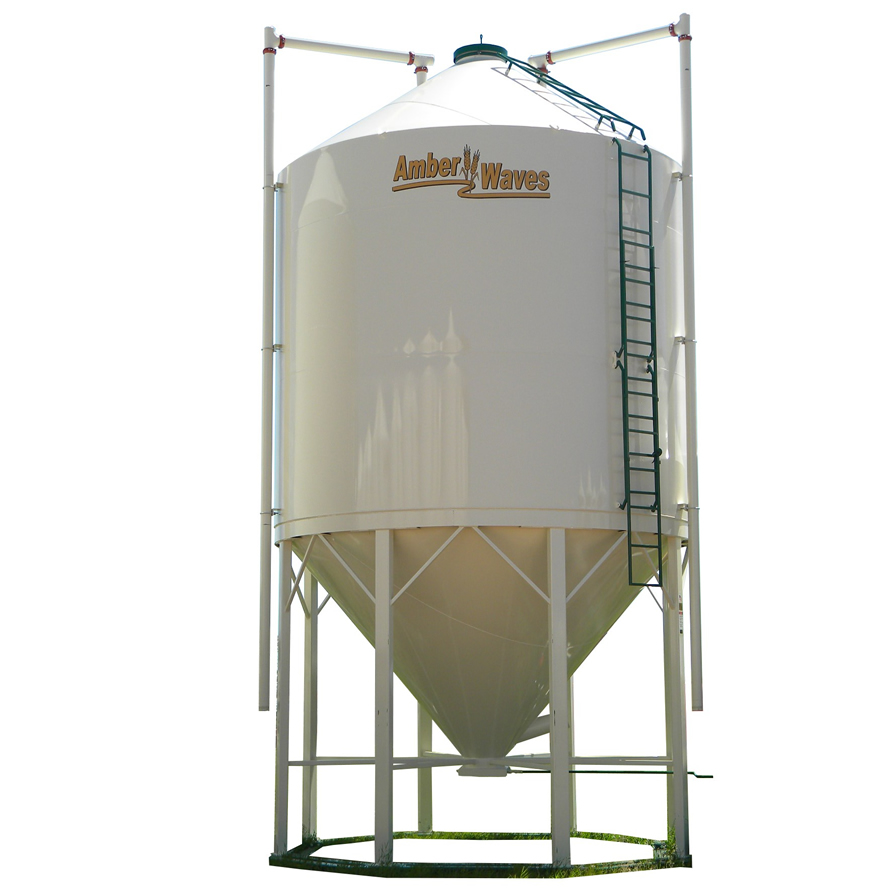

Frac Bin

1640F Frac Bin

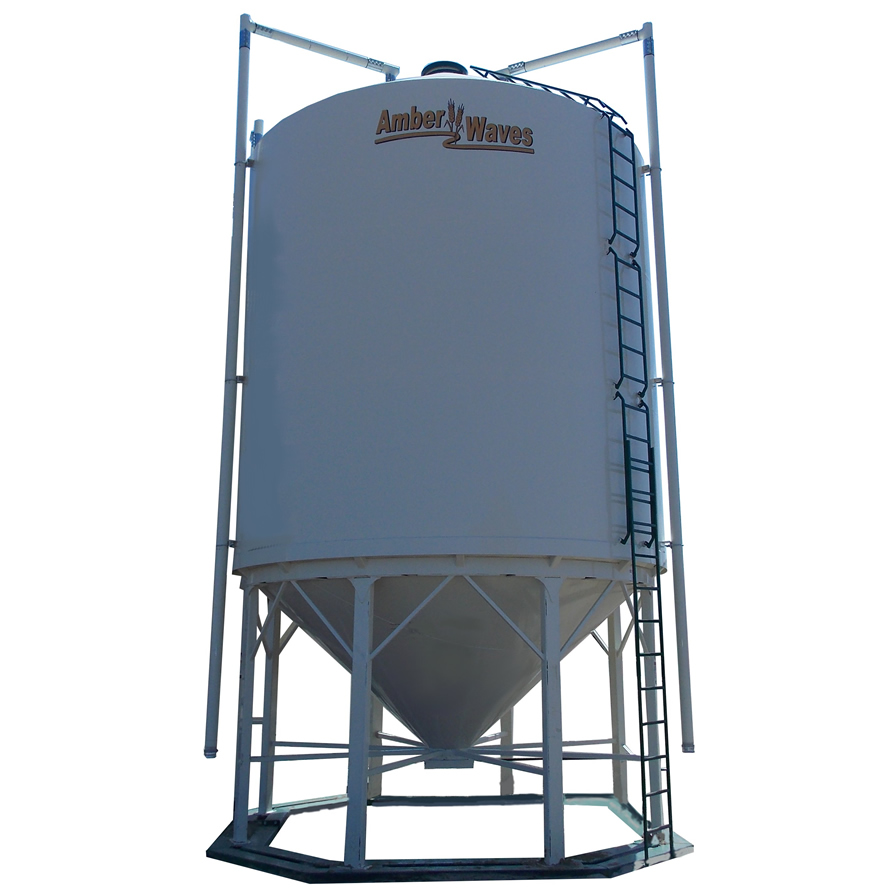

1630F Frac Bin

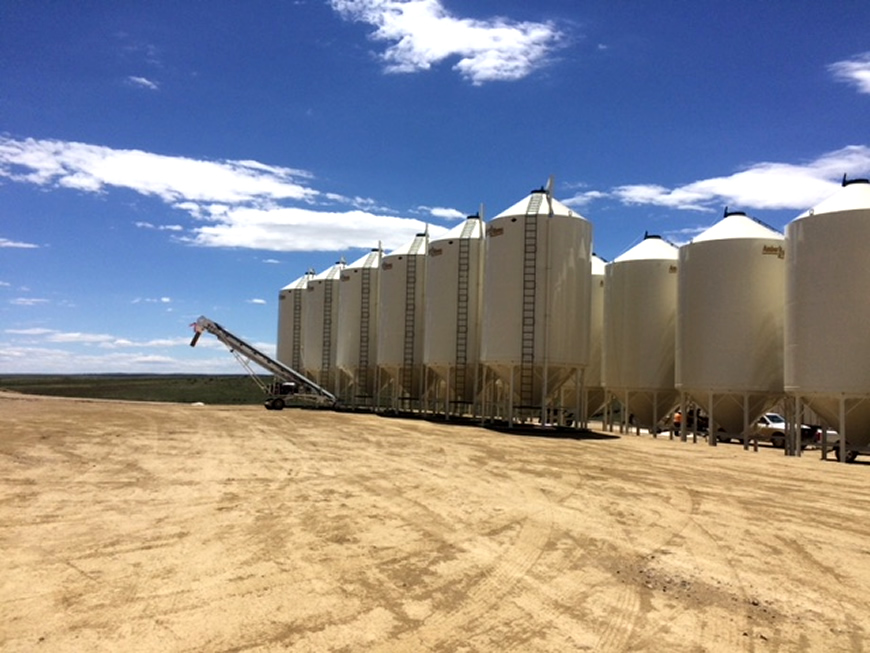

Commercial Frac Site

Frac Bins

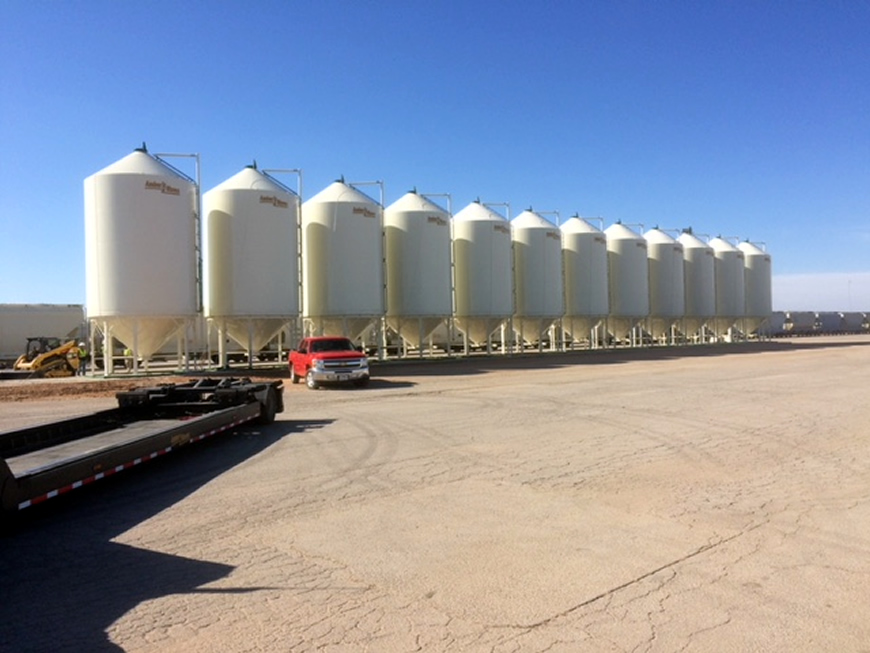

Trans Load Commercial Site
Standard Features
- Custom Built to Your Specification
- 30″ Spring Loaded Locking Lid
- Approved for up to 110 lb /cu ft material
- 4″ Pneumatic Fill Tubes
- 42 Degree Bottom Cone
- Quality Exterior Finish with “Protect Polyurethane Paint System”
- Easy In / Easy Out Sand Storage
- Delivery and Set Up Provided
Details and Specifications
Frac sand Storage bins
MODEL
CU. ft.
1330F
2,450
1430F
2,800
1525F
2,900
1630F
3,800
1640F
4,750
