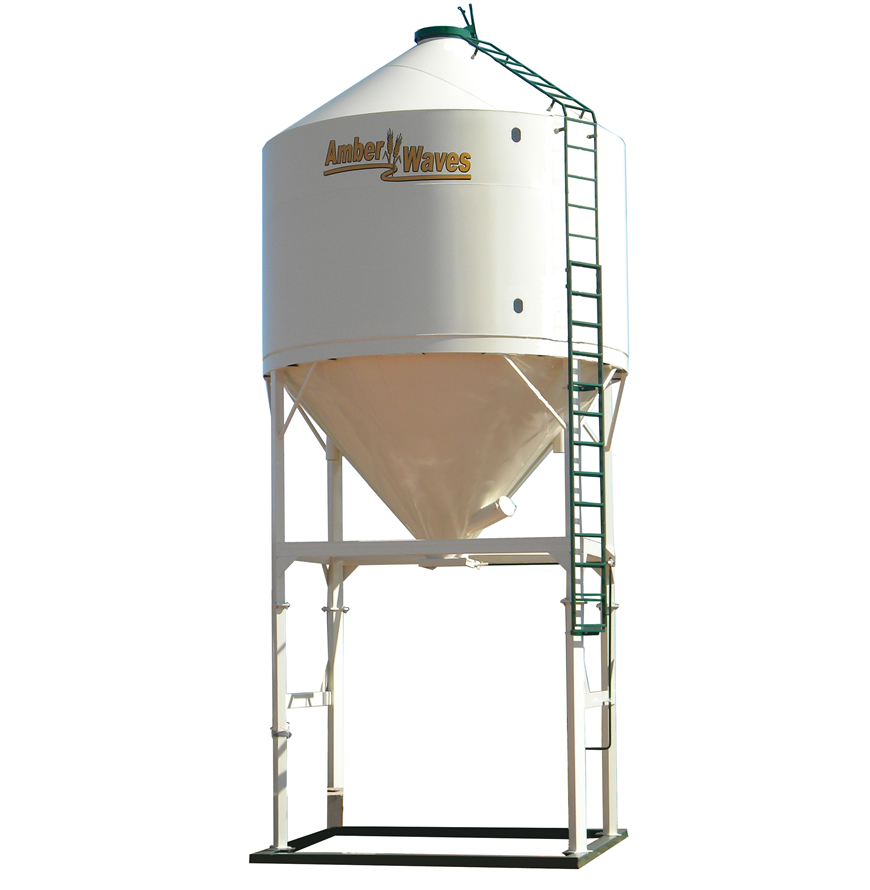

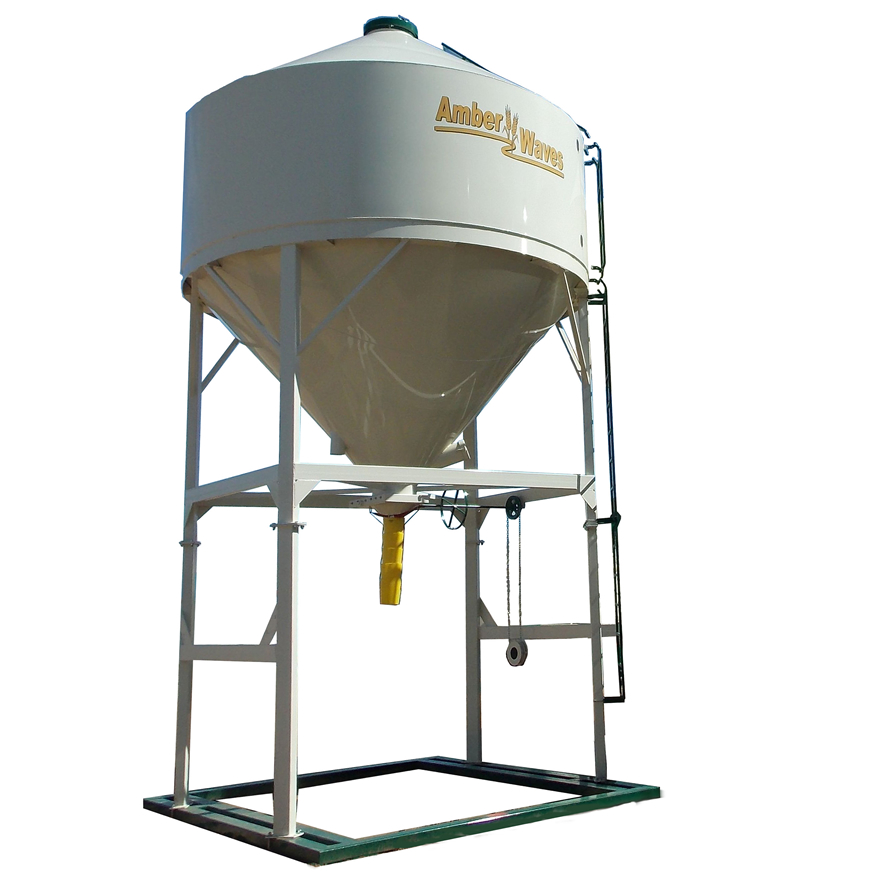

Overhead Cake Bins



When it comes to overhead cake bins, we designed and built the bin we wanted for our own ranches. We wanted to be able to operate the slide gate with gloves on and load the cake feeder without getting a face full of dust.

In addition, we wanted to be able to see at a glance how much feed we had remaining in the bin. When the bottom view glass shows that it’s empty with our model 1415C, you can see that you have room to take a semi-load and still have feed left for a couple of days.

Standard Features


  • 9′ 4″ Above Ground Clearance (extra height available)
  • 10′ 5″ Inside Width Clearance
  • 50 Degree Bottom Cone Slope
  • Epoxy Coated Inside
  • Natural Draft Air Vent System
  • Poke Hole
  • Top Manhole
  • Top Lev-Alert, Bottom View Glass
  • Exterior Ladder
  • Remote Operated Locking Lid
  • Delivery and Onsite Set-up
  • Protect Polyurethane Paint System Exterior Coating

Details and Specifications



Check out these customized options to fit your needs.

Overhead Cake Bins

Model Bushels Cu. Ft. Tons of Cow Cake
1410C 1,165 1,449 24-28
1415C 1,475 1,834 32-36
